How to Adjust a Fountain Pen Nib Safely: Alignment, Tines, and When to Stop
A fountain pen that still skips, starts hard, writes scratchily, or feels unusually dry after cleaning and refilling may have a nib or feed problem. Do not bend parts immediately. First, inspect the nib under magnification, identify whether the tines or feed are actually misaligned, and decide whether the issue is suitable for a small home adjustment.
This guide explains what proper alignment looks like, how visible problems relate to writing symptoms, how to make limited corrections, how to verify the result, and when stopping is safest. For broader symptom identification, see this fountain pen troubleshooting guide.
What Proper Fountain Pen Nib and Feed Seating Should Look Like
The nib, its two tines, and the feed should work as a centered assembly. Viewed from above, the slit between the tines should line up with the feed channel rather than sitting noticeably to one side. Viewed from the writing tip, both tipping points should meet at the same height. If one tine is higher, the pen may feel scratchy in one direction even when the nib appears centered from above.
The feed should sit securely beneath the nib. It should not visibly twist, rock, or pull away during ordinary writing. Exact appearance varies by pen design, so compare the parts with their original position instead of assuming every nib and feed should look identical. Proper alignment means a stable, centered relationship—not a perfectly uniform shape.
Common Alignment Problems: Cause, Effect, and First Response
A tine that is higher, lower, or shifted sideways changes how the tipping material meets the paper. Uneven contact can cause directional scratchiness, inconsistent ink flow, or a feeling that the pen catches on paper fibers. A slit that is too closed may restrict ink movement, while an uneven gap can make flow inconsistent.
A poorly seated feed can produce similar symptoms because it no longer supports the nib evenly or maintains the intended ink-and-air path. Inspect before adjusting: identify which part is visibly out of position, check whether the nib moves independently of the feed, and avoid aggressively bending the nib to correct a suspected feed problem.
How to Inspect the Tines and Feed Before Adjusting
Quick answer: use bright, indirect light and magnification, inspect the nib from several angles, and make only one controlled change at a time.

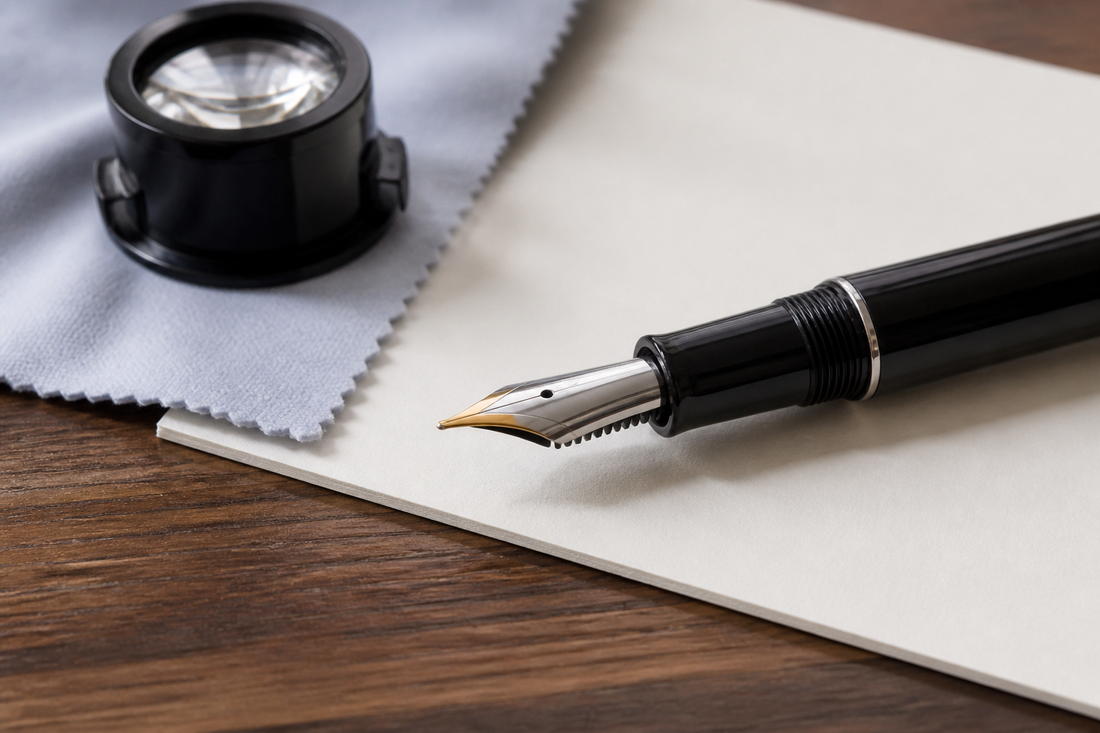

Begin with the pen empty or positioned so ink will not spill if the nib is handled. A loupe or strong magnifier can reveal details that are difficult to see normally, but magnification can also make minor irregularities appear more serious than they feel on paper. Use it to confirm a writing problem, not to chase visual perfection.
Inspect from above. Look for a slit centered over the feed and tines that appear reasonably symmetrical. Then view the writing tip straight on. The tipping points should meet evenly. A visibly higher tine may explain scratchiness, but the writing test determines whether the difference is functionally significant.
Check the side profile for a nib lifted away from the feed, an off-center feed, or movement when touched very lightly. Do not press hard to test movement. If the feed is removable, consult the maker’s instructions first. Some assemblies are friction-fit, while others are secured or designed for a particular filling mechanism. If you cannot identify the construction, leave it assembled.
The Most Common Adjustment Mistakes—and a Better Method
The most common mistake is treating nib adjustment like ordinary bending. A reader sees one tine sitting high and pushes it down repeatedly, or spreads the tines to increase flow without confirming that the gap is the cause. Writing depends on several relationships at once: tine height, symmetry, slit width, tipping shape, and feed support.
Excess pressure can create a new problem faster than it fixes the old one. A tine may become misaligned in the opposite direction, the slit may open unevenly, or the nib may no longer match the feed. Plated or delicate surfaces can also be damaged by tools or rough handling. Do not use pliers, knives, abrasive materials, or improvised shims.
Use a staged correction. Make the smallest movement that could address the specific observation, then test the pen before changing anything else. If one tine is clearly higher, bring the tipping points into a more even relationship rather than reshaping the entire nib. Use clean fingers and gentle, controlled pressure only when the adjustment is minor and the nib design is familiar.
Do not spread the tines simply because the pen writes dry. Dry writing can have other causes, and opening the slit too far may cause excessive flow or unreliable contact with the feed. If the slit appears damaged, the tines resist light correction, or the nib requires force to move, stop.
Feed seating requires separate caution. If the nib is centered but the feed is visibly rotated or pulled away, reseating may help only when the pen is designed for user removal and the correct orientation is clear. Complex filling systems can contain parts that are easy to lose or reinstall incorrectly. Follow the manufacturer’s service guidance instead of applying pressure based on appearance alone.
Professional service is safer when the nib is cracked, badly bent, unexplainedly loose, sharply scratchy after a minor attempt, or still unreliable after the visible issue is corrected. Seek help as well when the pen has sentimental or financial value, the nib is unusual, or you cannot tell whether the problem involves the nib, feed, tipping, or filling system.
A Controlled Nib Adjustment and Verification Routine
- Prepare the workspace. Use a clean, well-lit surface with a soft cloth beneath the pen. Keep the cap, converter, and filling parts away from the work area.
- Confirm the baseline. Write a few lines with normal pressure. Note whether the problem is scratchiness, hard starting, uneven flow, or a directional catch.
- Inspect before touching. Use magnification to check tine height, slit centering, tipping contact, and feed position. A photograph can help you compare the nib later.
- Choose one target. Correct only the clearly identified issue. Do not adjust tine height, slit width, and feed position together.
- Make a minimal correction. Apply gentle finger pressure appropriate to the misalignment. Avoid tools, twisting, and repeated bending. If the part does not respond easily, stop.
- Inspect again. Check the nib from above, straight on, and from the side to ensure the correction did not create another offset.
- Test with ordinary writing. Use the same ink and paper as the baseline. Write slowly, then at normal speed, and test several directions without pressing harder to force ink flow.
- Stop at stable improvement. The nib does not need to look mathematically perfect if it writes cleanly and comfortably. Further adjustment can turn a functional result into a damaged nib.
If the pen remains inconsistent, set it aside rather than continuing to experiment. Record what you observed and changed, then seek service with that information available.
The safest next action is to inspect the nib under magnification, make no adjustment unless the fault is clearly visible, and stop immediately if correction requires force.
